PRODUCT PARAMETERS
Data parameters are helpful to know more about the equipment

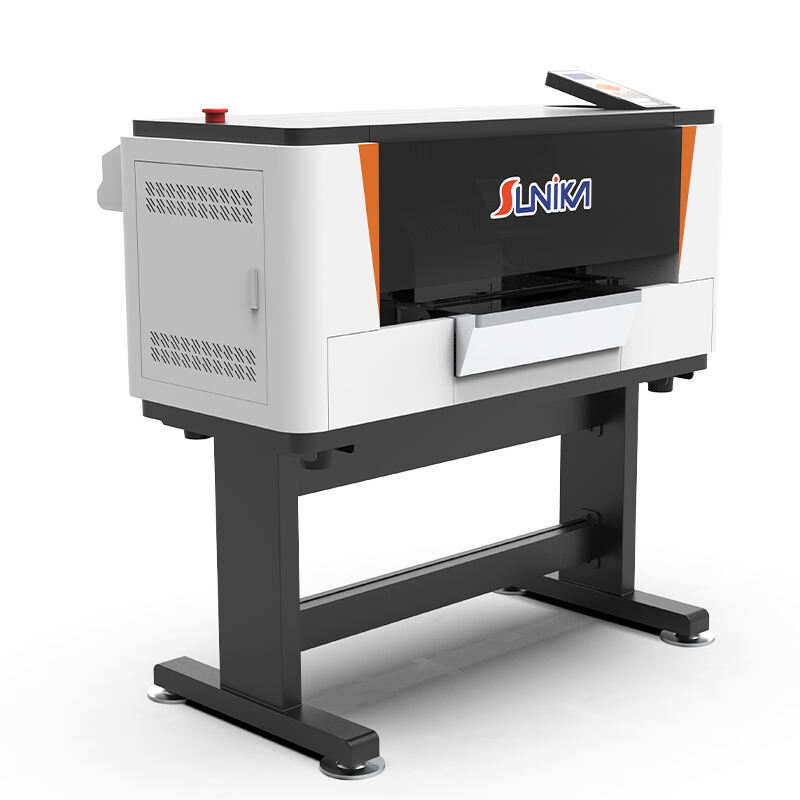

| Model | SK30 (Double-head) | |||||||||||||
| Printhead | Type: EPSON F1080-A1 Quantity: 2 | |||||||||||||
| Print Width | 300mm | |||||||||||||
| Print Speed |
6PASS 4 m2/h 8PASS 3 m2/h |
|||||||||||||
| Ink Type | Pigment Ink | |||||||||||||
| Print Color | CMYK+W | |||||||||||||
| RIP Software | Riin (Standard); Maintop, FlexiPRINT(Optional) | |||||||||||||
| Interface | Gigabit port | |||||||||||||
| Print Media | PET Film | |||||||||||||
| Image Format | JPG, TIF, PDF, etc. | |||||||||||||
| System Configuration | WIN7/WIN10, HARD DISK: 500G or more, GPU: ATI Discrete GPU Memory: 8G or more, CPU: Intel i5 Processor | |||||||||||||
| Working Environment | Temp.: 18℃ - 30℃ Humidity: 35% - 65% | |||||||||||||
| Power | 1000W 220V/110V, 50Hz/60Hz, 10A | |||||||||||||
| Printer Size | 1150*700*500mm | |||||||||||||
| Package Size | 1200*650*620mm | |||||||||||||
| Weight | N.W.: 85kg G.W.: 110kg | |||||||||||||
| Powder Shaker Size | 650*540*570mm | |||||||||||||
| Package Size | 780*610*700mm | |||||||||||||
| Weight | N.W.: 32kg G.W.: 47kg | |||||||||||||
PRODUCT DETAILS PRESENTATION
Strict control of details, quality assured

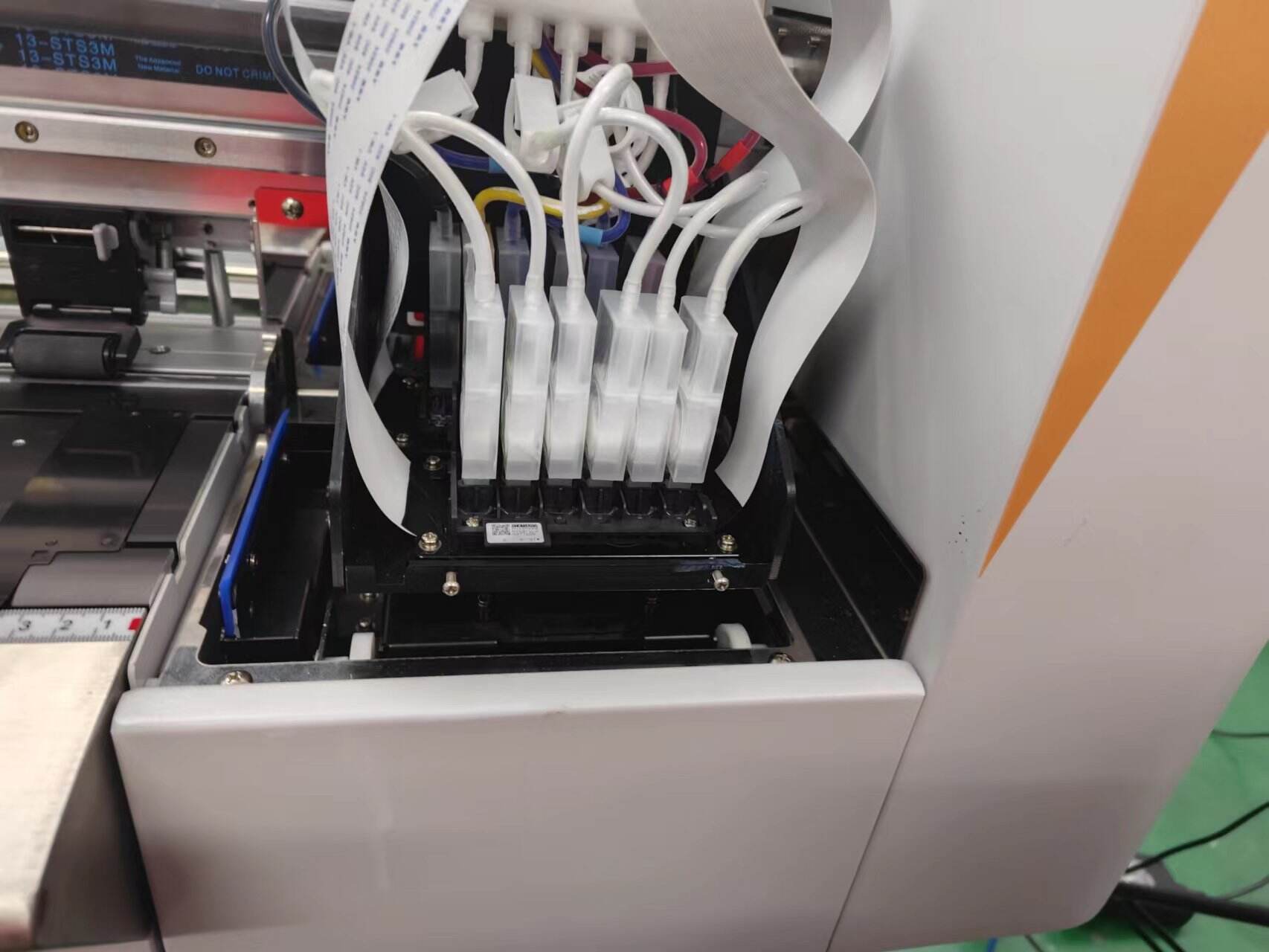

Double printheads design
Equipped with double F1080-A1 printheads, faster printing

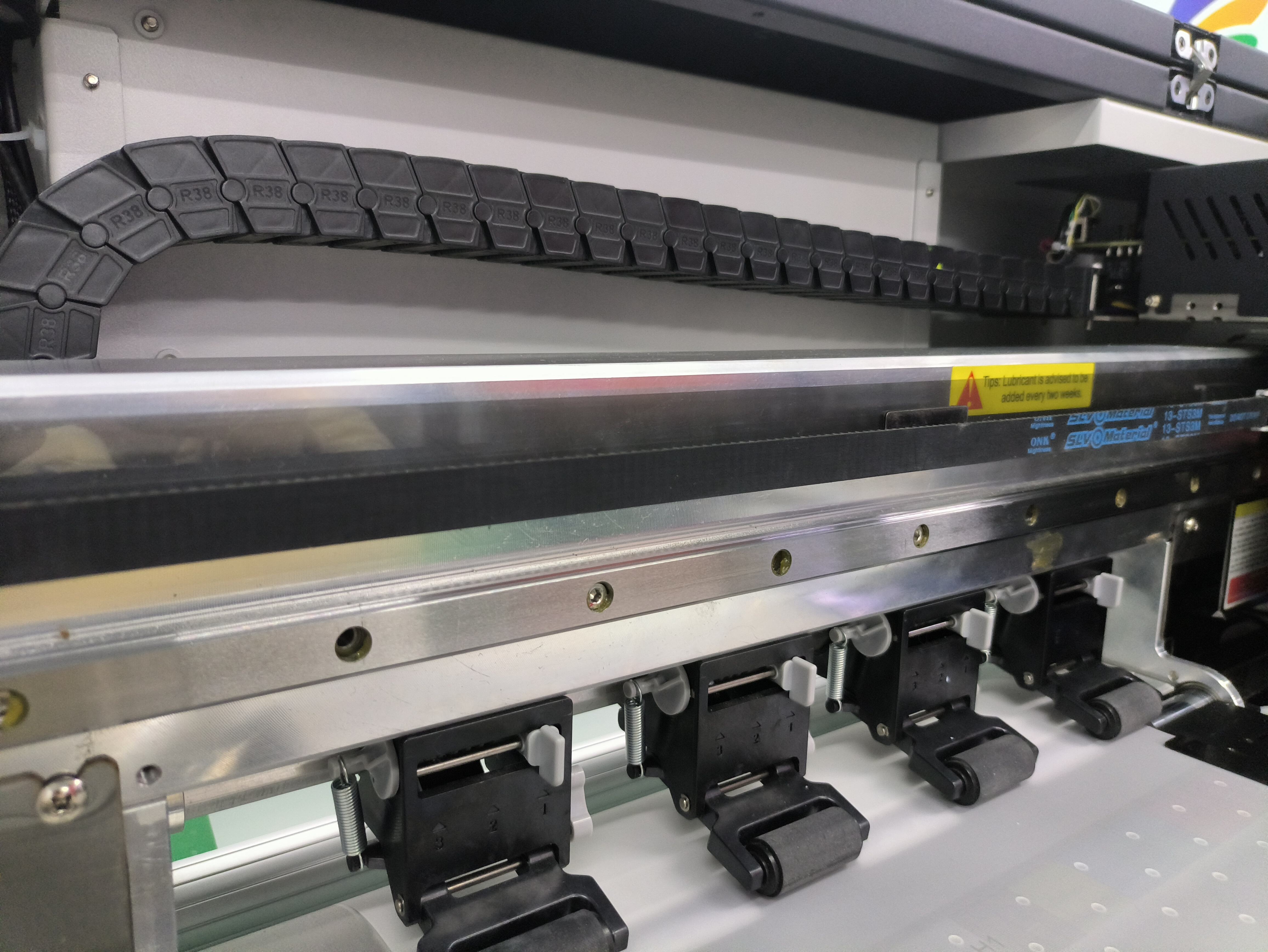

Silent linear guide rail
No noise, more smooth movement, more stable printing, longer service life of the machine

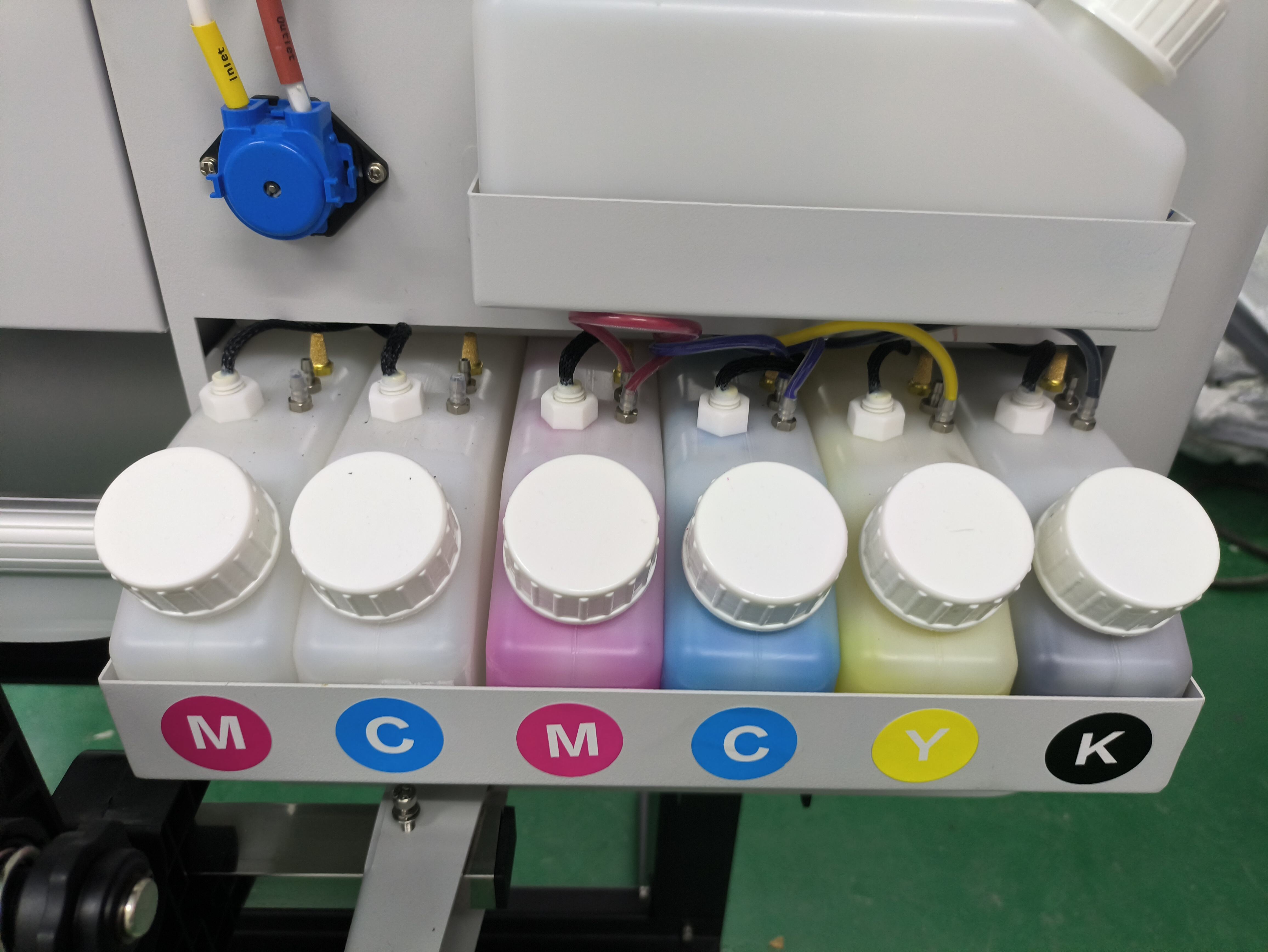

White ink automatic mixing/circulation
Anti-clogging and anti-precipitation, more uniform ink output.
